空压机&真空泵 – BESTEN贝斯特 //m.jcwhintney.com 高端无油空压机，制氧机空压机，呼吸机空压机，直流空压机制造商 Sun, 12 Apr 2020 08:07:24 +0000 zh-CN hourly 1 https://wordpress.org/?v=6.4.5 //m.jcwhintney.com/wp-content/uploads/2021/04/favicon1.png 空压机&真空泵 – BESTEN贝斯特 //m.jcwhintney.com 32 32 超静超洁净的无油空压机 //m.jcwhintney.com/1021.html Sun, 12 Apr 2020 08:02:15 +0000 //m.jcwhintney.com/?p=1021
  • 规格书
  • 典型应用
  • 特点
    • Model
    Motor (W)
    Displace-ment (L/min)
    Max Pressure (Bar)
    Tank (L)
    Noise dB(A)
    Filtration precision (μ)
    dew point (℃)
    Weight (KG)

    Size

    L×W×H(cm)
    GSZW0.045/7C
    580
    115
    8
    30
    41

    1,0.1,

    0.01,0.001

    -20

    -40
    -70
    77
    50×60×90
    GSZW0.055/7C
    780
    155
    8
    30
    42

    1,0.1,

    0.01,0.001

    -20

    -40
    -70
    79
    50×60×90
    GSZW0.11/7C1
    1100
    210
    8
    30
    47

    1,0.1,

    0.01,0.001

    -20

    -40
    -70
    88
    50×60×90
    GSZW0.045/7C-6
    580
    115
    8
    6
    41

    1,0.1,

    0.01,0.001

    -20

    -40
    -70
    55
    60×40×90
    GSZW0.09/7C
    2×580
    230
    8
    60
    43

    1,0.1,

    0.01,0.001

    -20

    -40
    -70
    88
    115×67×115
    GSZW0.11/7C2
    2×780
    310
    8
    60
    45

    1,0.1,

    0.01,0.001

    -20

    -40
    -70
    96
    115×67×115
    GSZW0.22/7C
    2×1100
    420
    8
    70
    49

    1,0.1,

    0.01,0.001

    -20

    -40
    -70
    125
    115×67×115
    GSZW0.135/7C
    3×580
    345
    8
    70
    45

    1,0.1,

    0.01,0.001

    -20

    -40
    -70
    130
    115×67×115
    GSZW0.165/7C
    3×780
    465
    8
    70
    47

    1,0.1,

    0.01,0.001

    -20

    -40
    -70
    135
    115×67×115
    GSZW0.33/7C
    3×1100
    630
    8
    120
    51

    1,0.1,

    0.01,0.001

    -20

    -40
    -70
    185
    115×67×115

    大型医疗机构、实验室、精密仪器、ICU急救医疗室等高端行业

    根据客户对优质压缩空气的要求，BESTEN为您提供空气压力露点在-20至-70℃之间，最低过滤精度为0.001μ的压缩空气解决方案。
    压缩机还可以提供一个活性炭过滤器，输出干燥、清洁和无菌的空气。



    ]]>         DC直流无油空压机整机 //m.jcwhintney.com/981.html Sun, 12 Apr 2020 06:49:55 +0000 //m.jcwhintney.com/?p=981
  • 参数
  • 典型应用
  • 特点

    • 汽车车载、场内电动小火车、工程车、野外直流供电气动设备、军工等

    超长的使用寿命：高性能节能型永磁无刷电机，进口活塞环，进口轴承及阀片；

    智能控制:部分机器支持多种参数显示，支持远程控制，支持自定义设置；

    更低的噪音：机械配合精密，震动小，噪音低；

    更洁净的空气：完全无油设计，部分产品支持不锈钢或铝制储气罐，支持加装吸附式干燥机及精密过滤器；

    电压范围：支持DC12V\DC24V\36V\48V\60V\72V\80V\96V\110V\144V\200V\320V\540V电压

    满足严苛环境要求：部分产品耐受低至-43℃，高至80℃，海拔0-7000米的使用环境

    定制与开发：支持多机头拓展，支持非标产品定制



    ]]>         无油空压机全系列 //m.jcwhintney.com/964.html Sun, 12 Apr 2020 06:34:29 +0000 //m.jcwhintney.com/?p=964
  • 规格书
  • 应用范围
  • 特点

    • 医用、工业用、实验室用、气动工具用、牙科用等行业

    超长的使用寿命：高性能电机，进口活塞环，进口轴承及阀片；

    智能控制:部分机器支持多种参数显示，支持远程控制，支持自定义设置；

    更低的噪音：机械配合精密，震动小，噪音低；

    更洁净的空气：完全无油设计，部分产品支持不锈钢或铝制储气罐，支持加装吸附式干燥机及精密过滤器；

    电压范围：支持AC100V-120V/60HZ/50HZ、220v-240/60HZ/50HZ、380v-440v/60HZ/50HZ电压

    定制与开发：支持多机头拓展，支持非标产品定制

    ]]>         呼吸机外接无油空压机（移动箱式） //m.jcwhintney.com/953.html Thu, 09 Apr 2020 11:41:34 +0000 //m.jcwhintney.com/?p=953
  • 参数
  • 适用范围
  • 特点
    • Model BST320AF BST400/7AF-c
    Voltage/frequency (V/Hz) 220-240V/50Hz 220-240V/50Hz
    Input Power (W) 380 480
    Speed (r/min) 1400 1400
    Rated working pressure (Bar) 3.5Bar 5Bar
    Maximum pressure (Bar) 5 7
    Pressure range (Bar) 0-5Bar 0-7Bar
    Rated volume flow (m3/h) ≥35L/min@5Bar ≥30L/min@7Bar
    Air tank (L) 3L (stainless steel) 6L (stainless steel)
    Air tank material Aluminum or stainless steel Aluminum or stainless steel
    Exhaust temperature Ambient temperature +10℃ Ambient temperature +10℃
    Noise dB(A) ≤40dB(A) ≤42dB(A)
    Ambient temperature ℃ -20～45℃ -20～45℃
    Insulation Class/Protection Class B/IP43 B/IP43
    Vibration intensity ≤0.45mm ≤0.45mm
    Drive mode Direct driven by motor Direct driven by motor
    Motor temperature ≤50℃ ≤50℃
    Withstand voltage strength 1500V/50Hz 1min?No breakdown 1500V/50Hz 1min?No breakdown
    Thermal protector Auto-reset135±5℃ Auto-reset135±5℃
    Oil content 0ppm 0ppm
    Filtering accuracy 0.001μm 0.001μm
    Outlet specifications 6mm 8mm
    unloading pressure of safety valve 0.55-0.6MPa 0.8-0.88MPa
    Pressure of start or stop 4Bar, open; 5Bar, stop 5Bar, open;7Bar, stop
    Authentication TUV ISO TUV ISO
    Form Portable,Mobile type Mobile type
    Outline size L*W*H 40*25*50cm 50*50*60CM
    Weight 16kg 45kG

    医用呼吸机，麻醉机，ICU病房仪器的配套

    超静，超洁净，可以移动，可选便携式，储气罐为不锈钢或铝罐。

    ]]>         火车用直流空压机DC110V，DC24 //m.jcwhintney.com/947.html Sun, 05 Apr 2020 13:55:37 +0000 //m.jcwhintney.com/?p=947
  • 规格书
  • 典型应用
  • 特点
    • Model
    BST550 DC110V
    BST300/7 DC110V
    Voltage/frequency    (V/Hz)
    DC110V 75V-135V
    DC110V 75V-135V
    Input power    (W)
    ≤550W ≤5.5A
    ≤280W ≤3A
    Speed     (r/min)
    ≥1800
    ≥1800
    Rated working pressure      (KPa)
    700KPa
    700KPa
    Maximum pressure     (KPa)
    800KPa
    800KPa
    Rstartup pressure      (KPa)
    0KPa
    0KPa
    Rated volume flow     (m3/h)
    ≥3.0m3/h@700KPa
    ≥1.2m3/h@700KPa
    Noise dB(A)
    ≤65dB(A)
    ≤62dB(A)
    Ambient temperature    (℃)
    -40～50 ℃
    -40～50 ℃
    Insulation Class
    B
    B
    Ection class
    IP54
    IP54
    Anti electromagnetic interference
    EN50121-3
    EN50121-3
    Anti shock
    IEC61373-2010 Class 1 A level
    IEC61373-2010 Class 1 A level
    Cold insulation resistance      (MΩ)
    ≥100MΩ
    ≥100MΩ
    Withstand voltage strength
    500V/50Hz 1min no breaking
    500V/50Hz 1min no breaking
    Net weight    (Kg)
    8.5Kg
    5.1Kg
    Installation dimension    (mm)
    223.2×88.9 mm(4XM6)
    223.2×88.9 mm(4XM6)
    External dimensions     (mm)
    268.8×128×212.7 mm
    268.8×128×212.7 mm
    Intake / Exhaust dimensions
    G1/4
    G1/4



    Model
    BST200DC-IP54-DC24V
    Voltage/frequency V/Hz
    DC 24V
    Input power W
    300W
    Speed r/min
    ≥1800
    Maximum pressure KPa
    600KPa
    Rstartup pressure KPa
    0KPa
    Rated volume flow m3/h
    ≥4.2m3/h@0KPa
    Noise dB(A)
    ≤60dB(A)
    Ambient temperature ℃
    -20～50℃
    Insulation Class
    B
    Cold insulation resistance MΩ
    ≥100MΩ
    Withstand voltage strength
    500V/50Hz 1min No Breakdown
    Net weight Kg
    4.2Kg
    Air tank L
    2.6L
    Installation dimension mm
    190×120 4*M6
    External dimensions mm
    300*250*400mm
    Intake / exhaust dimensions
    G1/4 Of Accept customization
    Protection Class
    IP54 Waterproof and dustproof



    用于火车（高速动车、地铁）升弓配套

    直流无刷电机，使用寿命长，噪音低，防护等级高、维护简单，满足严苛环境要求。

    ]]>         皮带式油润滑空压机 //m.jcwhintney.com/933.html Sun, 05 Apr 2020 08:12:27 +0000 //m.jcwhintney.com/?p=933
  • 规格书
  • 用途
  • 特点

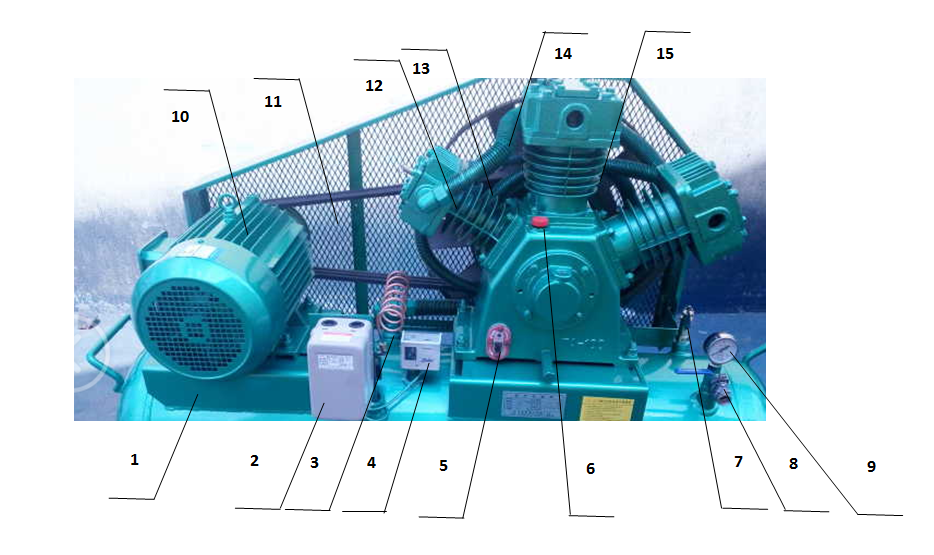

    • 1. Air tank: Thicken carbon steel storage tank, withstand 1.6 MPa pressure, can choose internal spraying anti-rust treatment.
    2. Magnetic starter: The device used for high power motor, It can effectively prevent the impact of instantaneous voltage on the power supply, then make the air compressor’s motor to start smoothly.
    3. Check valve group: Prevent the flow of gas from storage tanks.
    4. Pressure switch: More than 50,000 times operation life, differential pressure adjustable.
    5. Oil sight glasses: Before starting, we should check whether the lubricating oil is within the allowable range every time.
    6. Breathing hole
    7. Safe valve: The action is sensitive after overpressure, the instantaneous unloading volume is large, and more than 10,000 operation life.
    8. Copper valve: All copper material, good mechanical properties.
    9. Pressure gauge: 2.5 accuracy , and stainless steel shock pressure gauge optional.
    10. Motor: The motors Choose the famous brand in domestic, high efficiency, long life, small vibration and low noise.
    11. Belt: Well-known brand, good durability.
    12. Radiator pipe road: The compressed air link pipeline between cylinders, It has the characteristics of heat dissipation, high temperature resistance and high pressure.
    13. Pulley: Link with air compressor’s main shaft, a part of drive execution unit.
    14. Protective cover: Prevention of accidents when motor is running.
    15. Air compressor head: The air compressor is COMBESTAIR brand, high processing precision, high air displacement and durable.

    五金机电，一般工业用、木工用等

    排气量大，耐用好。

    Machine Parts

    Name: Bearing
    Brand: SKF or HRB
    Original: China or import
    1. Precision manufacturing, high durability, design service life >50,000 hours
    2. Satisfy the air compressor overload request, run smoothly

    Machine Parts

    Name: Motor

    Brand: COMBESTAIR-OEM or WNM

    Original: China

    1. Dynamic and efficient
    2. Small vibration, low noise, long life;
    3. Variable frequency optional, explosion-proof, F-level motor

    Machine Parts

    Name: Cylinder
    Brand: COMBESTAIR-OEM
    Original: China
    1. The unique inner wall protection patent technology can effectively prolong the life of piston and piston ring, it can also reduce the failure of cylinder.

    Machine Parts

    Name: Piston Ring
    Brand: COMBESTAIR-OEM, Saint-Gobain
    Original:  China or import
    1. PTFE composite material, wear resistant to high temperature
    2. Design life of > 15,000 hours

    ]]>         皮带式无油空压机，活塞式无油空压机 //m.jcwhintney.com/916.html Sun, 05 Apr 2020 07:25:03 +0000 //m.jcwhintney.com/?p=916
  • 规格书
  • 典型应用
  • 特点
    • Model型号   Volume flow 排气量(m3/min)  Exhaust Pressure 排气压力(Mpa)  Number of cylinders气缸数  Tank volume储气罐容积 (L)   Net weight (Kg) Power 输入功率(Kw)   Size 外形尺寸(cm)
    VW-0.3/7 0.3 0.7 2 80 167 3 122×47×80cm
    VW-0.3/10 0.3 1 2 80 167 3 122×47×80cm
    VW-0.45/7 0.45 0.7 2 80 175 4 122×47×80cm
    VW-0.4/10 0.4 1 2 80 230 5.5 122×47×97cm
    VW-0.6/7 0.6 0.7 2 170 245 7.5 147×67×110cm
    VW-0.8/7 0.8 1 2 170 280 7.5 147×67×110cm
    Description:
    1.Silent box can reduce noise 20-25% ;加装静音箱可以降低噪音20-25%
    2.The storage tank of the forced type air compressor should be matched ;包含储气罐，也可以采取储气罐与压缩机分体式安装
    3.Voltage电压范围:380-440V 3PH 50/60Hz 、220-240V 3PH 50/60Hz .
    Model   Volume flow (m3/min)  Exhaust Pressure (Mpa)  Number of cylinders  Tank volume (L)   Net weight (Kg) Power (Kw)   Size (cm)
    VW-0.3/7 0.3 0.7 2 80 167 3 122×47×80cm
    VW-0.3/10 0.3 1 2 80 167 3 122×47×80cm
    VW-0.45/7 0.45 0.7 2 80 175 4 122×47×80cm
    VW-0.4/10 0.4 1 2 80 230 5.5 122×47×97cm
    VW-0.6/7 0.6 0.7 2 170 245 7.5 147×67×110cm
    VW-0.8/7 0.8 1 2 170 280 7.5 147×67×110cm
    Description:
    1.Silent box can reduce noise 20-25% ;
    2.The storage tank of the forced type air compressor should be matched ;
    3.Voltage:380-440V 3PH 50/60Hz 、220-240V 3PH 50/60Hz .
    4. It can make a silent box.



    用于食品、医疗、实验室等需要洁净无油压缩空气的行业。

    排气量大，低噪音，使用寿命厂，振动小，维护简单。支持外形改装，支持排气量及排气压力定制。

    ]]>         无油空压机（多机头） //m.jcwhintney.com/905.html Sat, 28 Mar 2020 14:01:38 +0000 //m.jcwhintney.com/?p=905
  • 规格书
  • 典型应用
  • 特性

    • 本系列支持最多20个机头的多机头并联，满足客户对较大无油压缩空气的需求。支持定制，支持远程控制等智能化控制。

    Model型号
    BW504
    BW704
    Voltage/frequency
    输入电压
    1. 220-230V/50Hz
    2. 220-230V/60H
    3. 100-120V/60Hz
    4. 100V/50V/60Hz
    5. 380-440V  3PH  50Hz
    1、2 optional
    1、2、5 optional
    Power功率
    KW
    2.32
    3.12
    HP
    3
    4
    Volume flow排气量
    L/min @0MPa
    480
    700
    L/min @0.7MPa
    180
    220
    Pressure压力
    Bar
    8
    8
    MPa
    0.8
    0.8
    Tank volume
    储气罐容积
    L
    180
    180
    US gallons
    47.5
    47.5
    Noisy噪音
    dB
    59
    60
    Pressure switch压力设置
    According to customer’s requirements根据客户要求设置
    Configuration optiona可选配置
    		 1. Add oil and water separator加装油水分离器

    2. Add automatic drainer添加自动排水器3. Air tank against rust spray储气罐防锈处理
    1、2、3 optional
    1、2、3 optional
    Size外形尺寸
    L*W*H cm
    130*48*92
    130*48*92
    Weight重量
    Kg
    112
    115
    Packing包装尺寸
    Cartons or fumigated wooden cases size cm
    Wood 132*50*95
    Wood 132*50*95



    Model型号 BW 1105 BW 1506
    Voltage/frequency

    输入电压

    		1. 220-230V/50Hz

    2. 220-230V/60Hz
    3. 100-120V/60Hz
    4. 100V/50V/60Hz
    5. 380-440V  3PH  50Hz
    		 5 5
    Power功率 KW 7.5 9
    HP 10 12
    Volume flow排气量 L/min @0MPa 1500 1800
    L/min @0.7MPa 725 870
    Pressure压力 Bar 8 8
    MPa 0.8 0.8
    Tank volume储气罐容积 L 330 330
    US gallons 87 87
    Noisy噪音 dB 72 72
    Pressure switch压力设置 According to customer’s requirements根据客户要求设置
    Configuration optional 1. Add oil and water separator加油水分离器

    2. Add automatic drainer添加自动排水器
    3. Air tank against rust spray储气罐防锈处理
    		 1、2、optional 1、2、optional
    Size外形尺寸 L*W*H cm 173*53*120 173*53*120
    Weight重量 Kg 248 255
    Packing包装尺寸 Cartons or fumigated wooden cases size cm Wood 175*55*125 Wood 175*55*125

    用于大型医院及大型实验室集中供气系统，电子设备工厂，制药厂、食品厂

    多机组合，可根据客户要求定制，智能控制，数字化显示，可加远程控制模块。

    每个机头顺序启动，可选择机头轮换工作模式。

    可加装冷干机、吸干机、精密过滤器等后处理。

    ]]>         无油空压机（三机组） //m.jcwhintney.com/892.html Sat, 28 Mar 2020 07:44:40 +0000 //m.jcwhintney.com/?p=892
  • 规格书
  • 典型应用
  • 特性
    • Project
    BW503
    BW703
    Voltage/frequency
    输入电压

    1. 220-230V/50Hz

    2. 220-230V/60Hz
    3. 100-120V/60Hz
    4. 100V/50V/60Hz
    5. 380-440V  3PH  50Hz
    1、2、3、4 optional
    1、2、3、4、5 optional
    Power功率
    KW
    1.74
    2.34
    HP
    2.5
    3
    Volume flow排气量
    L/min @0MPa
    360
    525
    L/min @0.7MPa
    135
    165
    Pressure压力
    Bar
    8
    8
    MPa
    0.8
    0.8
    Tank volume储气罐容积
    L
    100
    100
    US gallons
    26.5
    26.5
    Noisy噪音
    dB
    59
    60
    Pressure switch
    According to customer’s requirements
    Configuration optional

    可选配置

    		1. Add oil and water separator加油水分离器
    2. Add automatic drainer添加自动排水器
    3. Air tank against rust spray储气罐防锈处理
    1、2、3 optional
    1、2、3 optional
    Size外形尺寸
    L*W*H cm
    100*36*59
    100*36*59
    Weight重量
    Kg
    64
    66
    Packing包装尺寸
    Cartons or fumigated wooden cases size cm
    Wood 102*38*63
    Wood 102*38*63



    Project
    BW1103
    BW1503
    Voltage/frequency
    输入电压

    1. 220-230V/50Hz

    2. 220-230V/60Hz
    3. 100-120V/60Hz
    4. 100V/50V/60Hz
    5. 380-440V  3PH  50Hz
    1、2、3、4 optional
    1、2、3、4、5 optional
    Power功率
    KW
    3.3
    		 4.5
    HP
    5
    		 6
    Volume flow排气量
    L/min @0MPa
    		 750 1200
    L/min @0.7MPa
    		 330 450
    Pressure压力
    Bar
    8
    8
    MPa
    0.8
    0.8
    Tank volume储气罐容积
    L


    180



    180

    US gallons
    47.7
    		47.7
    Noisy噪音
    dB
    65
    66
    Pressure switch
    According to customer’s requirements
    Configuration optional

    可选配置

    		1. Add oil and water separator加油水分离器
    2. Add automatic drainer添加自动排水器
    3. Air tank against rust spray储气罐防锈处理
    1、2、3 optional
    1、2、3 optional
    Size外形尺寸
    L*W*H cm
     153*48*95
    		153*48*95
    Weight重量
    Kg
    		135
    135
    Packing包装尺寸
    Cartons or fumigated wooden cases size cm
    Wood 102*38*63
    Wood 102*38*63

    用于医院、GMP制药厂、食品加工企业、汽车修理厂、大型实验室等需要较大排气量的行业。

    空气洁净，低噪音，免维护、可移动式、单个机头序列起动，防止大电流冲击、智能数字控制、可加装远程控制模块。



    ]]>         无油空压机整机（双机头），牙科及实验室用无油空压机 //m.jcwhintney.com/889.html Sat, 28 Mar 2020 05:15:35 +0000 //m.jcwhintney.com/?p=889
  • 参数
  • 典型应用
  • 特性
    • Project
    BW502
    BW702
    Voltage/frequency

    1. 220-230V/50Hz

    2. 220-230V/60Hz
    3. 100-120V/60Hz
    4. 100V/50V/60Hz
    5. 380-440V  3PH  50Hz
    1、2、3、4 optional
    1、2、3、4、5 optional
    Power
    KW
    1.16
    1.56
    HP
    1.5
    2
    Volume flow
    L/min @0MPa
    240
    350
    L/min @0.7MPa
    90
    110
    Pressure
    Bar
    8
    8
    MPa
    0.8
    0.8
    Tank volume
    L
    50
    50
    US gallons
    13
    13
    Noisy
    dB
    56
    57
    Pressure switch
    According to customer’s requirements
    Configuration optional

    1. Add oil and water separator

    2. Add automatic drainer
    3. Air tank against rust spray
    1、2、3 optional
    1、2、3 optional
    Size
    L*W*H cm
    77*36*59
    77*36*59
    Weight
    Kg
    48
    50
    Packing
    Cartons or fumigated wooden cases size cm
    Wood 79*38*63
    Wood 79*38*63



    Project
    BW1102
    BW1502
    Voltage/frequency

    1. 220-230V/50Hz

    2. 220-230V/60Hz
    3. 100-120V/60Hz
    4. 100V/50V/60Hz
    5. 380-440V  3PH  50Hz
    1、2、3、4 、5 optional
    1、2、3、4、5 optional
    Power
    KW
    2.4
    3.0
    HP
    3
    4
    Volume flow
    L/min @0MPa
    500
    600
    L/min @0.7MPa
    220
    290
    Pressure
    Bar
    8
    8
    MPa
    0.8
    0.8
    Tank volume
    L
    90
    90
    US gallons
    24
    24
    Noisy
    dB
    65
    66
    Pressure switch
    According to customer’s requirements
    Configuration optional

    1. Add oil and water separator

    2. Add automatic drainer
    3. Air tank against rust spray
    1、2、3 optional
    1、2、3 optional
    Size
    L*W*H cm
    90*40*85
    90*40*85
    Weight
    Kg
    85
    87
    Packing
    Cartons or fumigated wooden cases size cm
    Wood 92*42*88
    Wood 92*42*88

    主要用于牙科、实验室、医疗机构、工厂、气动工具等需要清洁压缩空气的行业。

    双机头组成，当某个机头出现故障，不影响另外一个机头工作，保证用户持续用气。

    压力0-8Bar,可定制12Bar压力。

    支持多机头扩展。

    更低的噪音，更大的排气量，简单操作，免维护，耐用性好。

    ]]>
